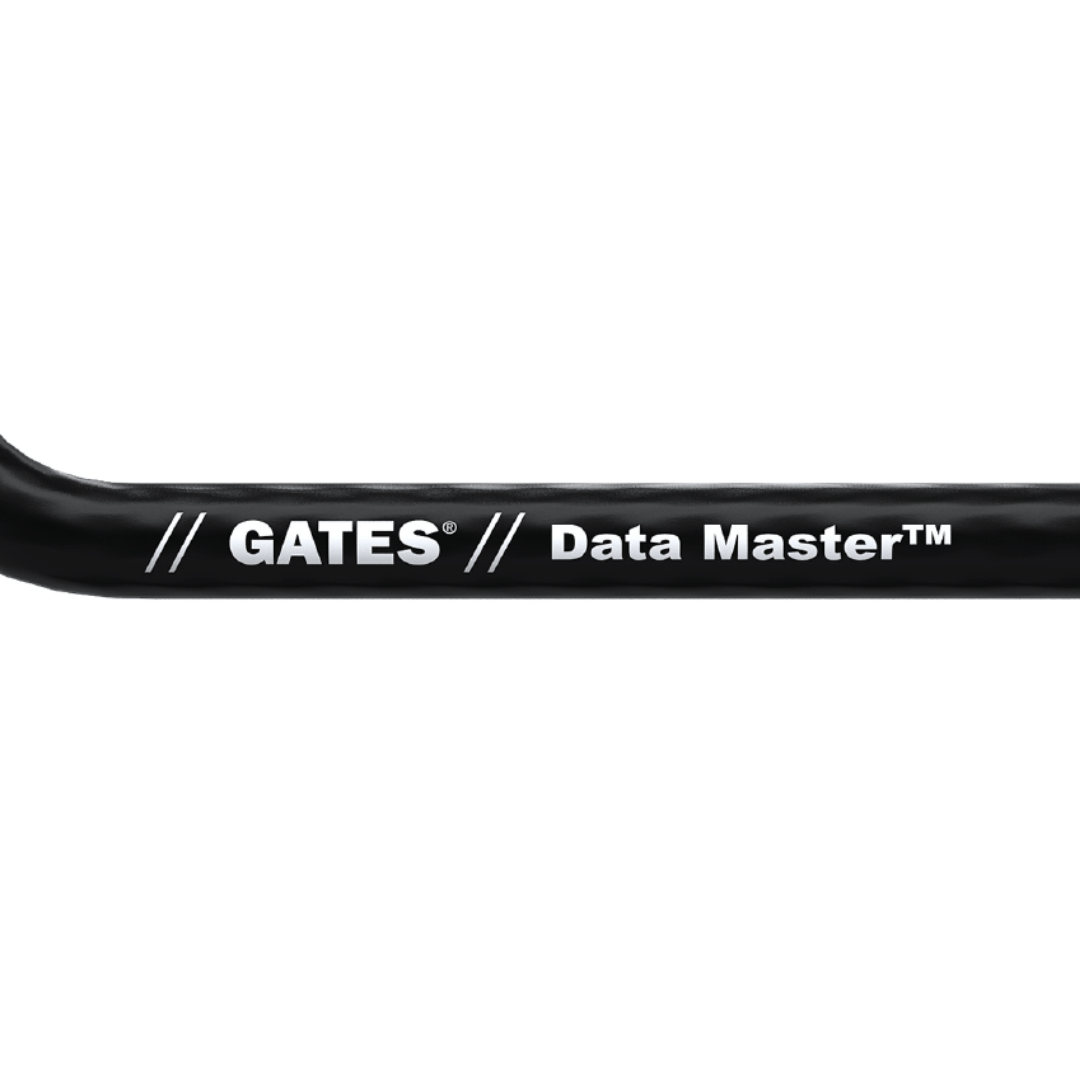

Data Master Cooling Hose

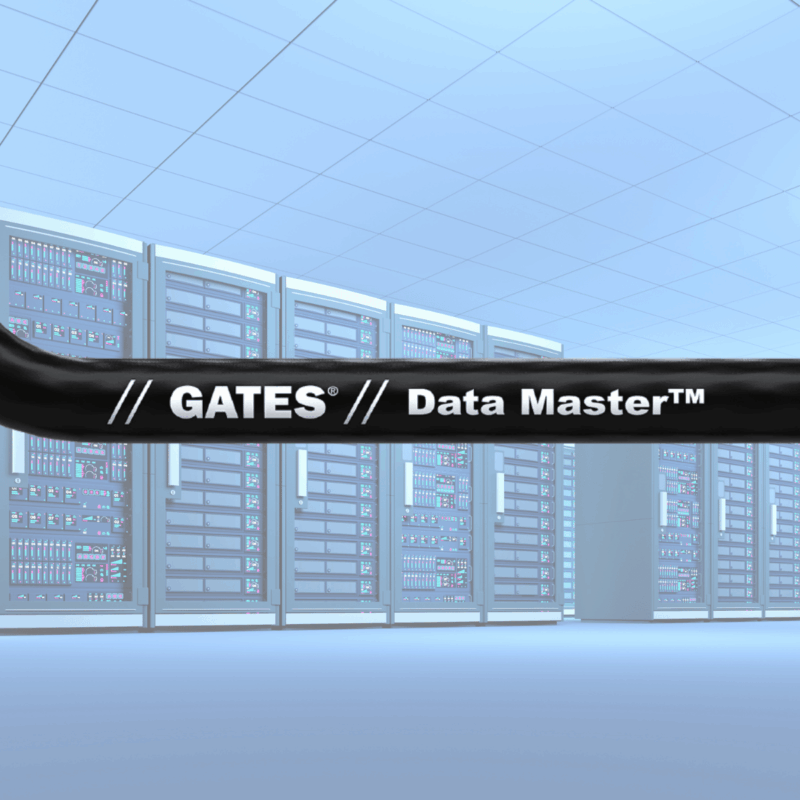

Engineered to efficiently circulate coolant, the Gates Data Master Cooling Hose keeps your data center operational in the toughest conditions.

Key Features:

Its zinc-free peroxide-cured EPDM tube offers the best compatibility with PG25 and other deionized water glycol coolant mixes to avoid fluid contamination and keep your servers running at maximum performance
Specially designed to have a narrow profile (diameter) while using Gates special manufacturing techniques to make them flexible for easy connection.

Type	Details
Material	Inner tube: Zinc-Free, Peroxide-Cured EPDM Tube Reinforcement: Synthetic fiber braid Cover: flame-resistant EPDM
Specifications	Size : 7/32″, 1/4″, 3/8″, 1/2″,3/4″ to 1″ Max pressure: 150 – 500 psi Safe factor: 4:1 Temperature range: -40°F to+212°F (-40°C to +100°C) Applicable standards: UL224 VW-1 and UL94V-0 standards Compatible with: • Push-Lock or Lock-on style fittings • Crimped: GLX & SS • Clamped: Hose bead with clamp (less than hose rated working pressure, do not use clamps with Lock–On fittings)

I.D		O.D		MAX WP		MIN BURST		MIN B.R		WEIGHT REF
In	mm	In	mm	psi	MPa	psi	MPa	In	mm	kg/m	lbs/ft
7/32	5.7	0.4	10.4	500	3.4	2000	13.8	0.59	15.0	0.08	0.05
1/4	6.4	0.49	12.4	300	2.1	1200	8.3	0.63	15.9	0.03	0.06
3/8	9.5	0.61	15.6	300	2.1	1200	8.3	1.25	31.6	0.04	0.09
1/2	12.7	0.74	18.7	300	2.1	1200	8.3	1.98	50.2	0.06	0.13
3/4	19.1	1.03	26.1	300	2.1	1200	8.3	2.90	73.8	0.10	0.23
1	25.4	1.34	33.9	150	1.0	600	4.1	3.50	89.0	0.17	0.38

Why Choose Gates Data Master™ Cooling Hose?

Engineered for Data Centers: Designed specifically for chilled water, in‑row, in‑rack, and direct‑to‑chip liquid cooling systems.
Leak‑Tight & Durable: Zinc‑free, peroxide‑cured EPDM construction ensures long‑lasting performance under demanding conditions.
Energy Efficiency: Supports advanced liquid cooling methods that can reduce data center energy consumption by up to 40%.
Flexible Solutions: Available in multiple configurations to fit diverse cooling system designs.
Trusted Innovation: Backed by Gates’ global expertise in fluid conveyance and power transmission solutions.
