High & Medium Pressure Instrument Fittings

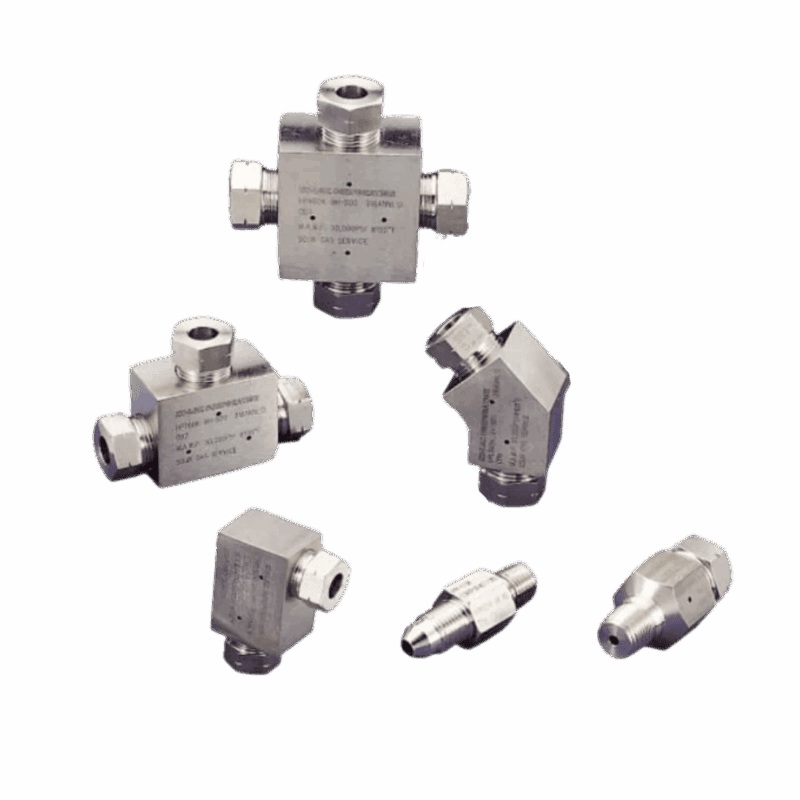

Complete range of elbows, tees ,and crosses is available for tubing size from 1/4″ to 1″
Sour Gas Service Fittings also available that are designed to resist sour environment and rated to max working pressure of 30,000 PSI at 100°F
Both Medium Pressure and High Pressure Instrument Fittings connections are coned and threaded designs

Instrument Fittings

Type	High Pressure	Medium Pressure
Material	Gland & Collar : Type 17-4 PH Stainless Steel Material & Test Certificate Will Be Provided	Gland & Collar : Type 17-4 PH Stainless Steel Material & Test Certificate Will Be Provided
Specifications	Max Working Pressure up to 60,000 PSI 1/4″ to 9/16″ Size ASME Quality and ISO 9001:2015 Certifications	Max Working Pressure up to 20,000 PSI 1/4″ to 1″ Size ASME Quality and ISO 9001:2015 Certifications
